Coolant Fan Control Module -J293- Connector View

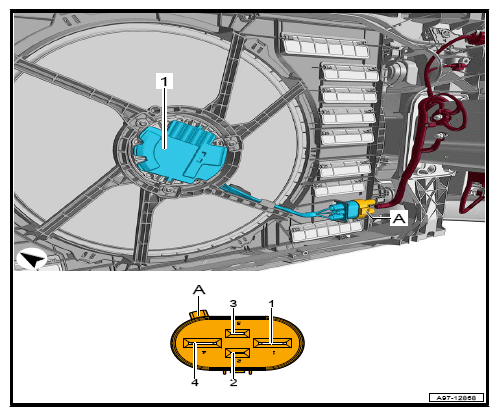

4-Pin Connector -T4BI- (A)

G12767455Courtesy of AUDI OF AMERICA, LLC
T4bi (A) Designation
1 Terminal 30
2 Relay and fuse carrier 1 SR1, Fuse carrier 1 ST1
3 Engine Control Module (ECM) J623
4 Terminal 31
