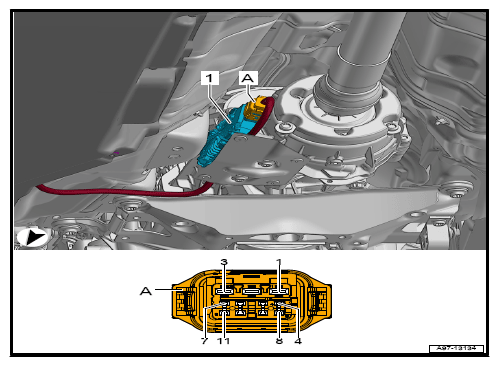

All Wheel Drive Control Module -J492- Location

  1. 1  - All Wheel Drive Control Module -J492-
  2. A  - 11-Pin connector -T11B-, Black
G12767488Courtesy of AUDI OF AMERICA, LLC
