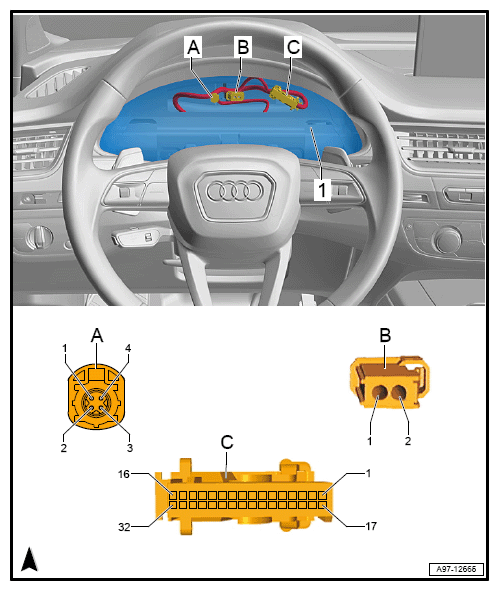

Instrument Cluster Module -J285-, W/Display Module, Location

  1. 1  - Instrument Cluster Control Module -J285-
  2. A  - 4-Pin Connector -T4BD-, Black
  3. B  - Double Connector -T2DX-, Black
    • MOST Bus
  4. C  - 32-Pin Connector -T32F-, Grey
G12767226Courtesy of AUDI OF AMERICA, LLC
