Structure Borne Sound Control Module -J869-, Connector Views

6-Pin Connector -T6I-

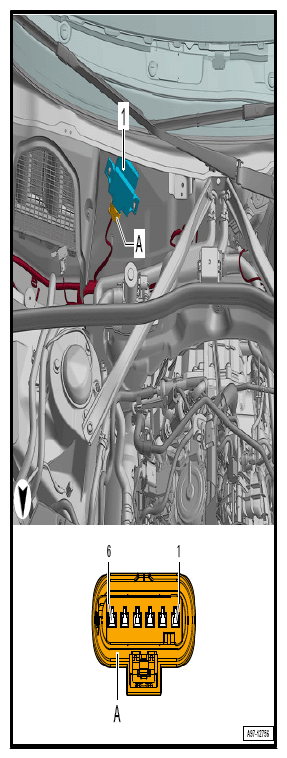

G12767205Courtesy of AUDI OF AMERICA, LLC
T6i (A) Designation
1 Structure-Borne Sound Actuator R214
2 Structure-Borne Sound Actuator R214
3 Terminal 15
4 Terminal 31
5 CAN-Bus
6 CAN-Bus
