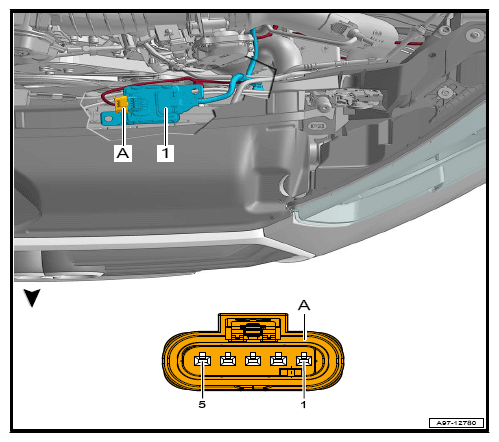

NOX Sensor Control Module -J583- Location

  1. 1  - NOx Sensor Control Module -J583-
  2. A  - 5-Pin Connector -T5W-, Black
G12767476Courtesy of AUDI OF AMERICA, LLC
