Rear View Camera System Control Module -J772- Connector Views

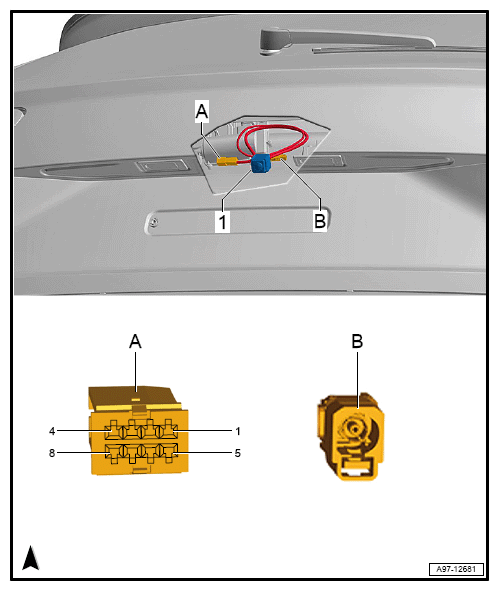

8-Pin Connector -T8K-

G12767580Courtesy of AUDI OF AMERICA, LLC
T8k (A) Designation
1 Terminal 30
2
3
4 Extended System CAN-Bus High
5 Terminal 31
6
7
8 Extended System CAN-Bus Low
