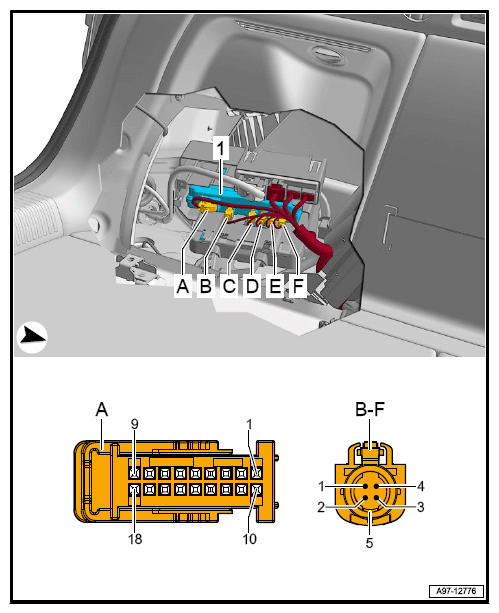

Peripheral Camera Control Module -J928- Connector Views

18-Pin Connector -T18A-

Courtesy of AUDI OF AMERICA, LLC

T18a (A)	Designation
1	Terminal 30
2	Extended System CAN-Bus High
3
4
5
6
7
8
9
10	Extended System CAN-Bus Low
11
12	Terminal 31
13
14
15
16
17
18
