Battery Monitoring Control Module -J367- Connector Views

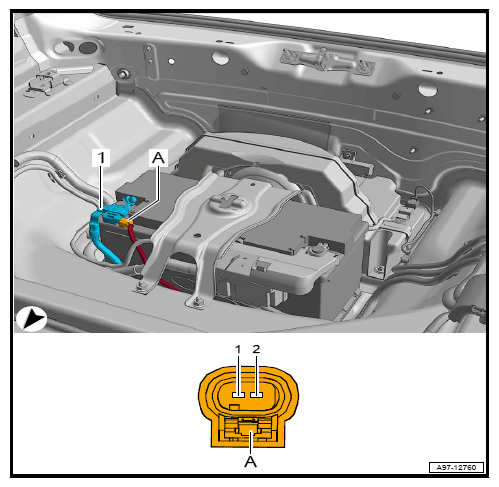

Double Connector -T2X-

G12767593

Courtesy of AUDI OF AMERICA, LLC

T2x (A)	Designation
1	LIN-Bus
2	Terminal 30
