Electrical Components Locations & Connector End Views -- A5 QUATTRO
>>
Comp. LOC. Vehicle Front Modules
>>
NOX Sensor Control Module J583
>>

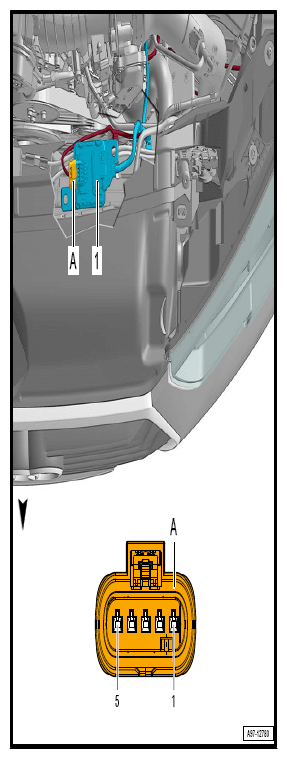

NOX Sensor Control Module -J583- Connector Views
NOX Sensor Control Module -J583- Connector Views
5-Pin Connector -T5W- (A)
Courtesy of AUDI OF AMERICA, LLC
T5w (A)
Designation
1
Terminal 87
2
Terminal 31
3
CAN-Bus powertrain, Low
4
CAN-Bus powertrain, High
5
Courtesy of AUDI OF AMERICA, LLC
