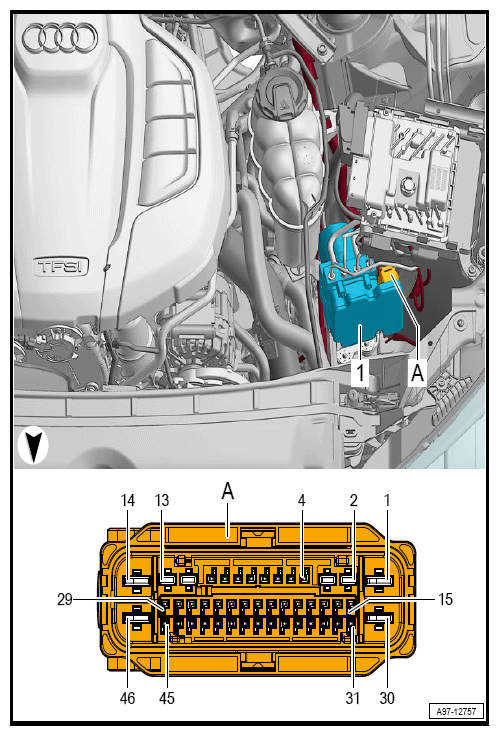

Abs Control Module -J104- Connector Views
46-Pin Connector -T46- (A)
| T46 (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Right Parking Brake Motor V283 |
| 3 | Right Parking Brake Motor V283 |
| 4 | Terminal 30 |
| 5 | |
| 6 | |
| 7 | Left Front Wheel Speed Sensor G47 |
| 8 | |
| 9 | |
| 10 | |
| 11 | |
| 12 | Left Parking Brake Motor V282 |
| 13 | Left Parking Brake Motor V282 |
| 14 | Terminal 31 |
| 15 | Electro-Mechanical Parking Brake Button E538 |
| 16 | Electro-Mechanical Parking Brake Button E538 |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | Right Front Wheel Speed Sensor G45 |
| 22 | Right Rear Wheel Speed Sensor G44 |
| 23 | Left Rear Wheel Speed Sensor G46 |
| 24 | Left Front Wheel Speed Sensor G47 |
| 25 | Electro-mechanical Parking Brake Indicator Lamp K213 |
| 26 | Right Front Wheel Speed Sensor G45 |
| 27 | |
| 28 | Engine Control Module (ECM) J623/Data-Bus wire (FlexRay-Bus) |
| 29 | |
| 30 | Terminal 30 |
| 31 | Electro-Mechanical Parking Brake Button E538 |
| 32 | Electro-Mechanical Parking Brake Button E538 |
| 33 | |
| 34 | Clutch Position Sensor G476 |
| 35 | |
| 36 | Terminal 15 |
| 37 | Right Rear Wheel Speed Sensor G44 |
| 38 | |
| 39 | Left Rear Wheel Speed Sensor G46 |
| 40 | Vacuum Sensor G608 |
| 41 | Vacuum Sensor G608 |
| 42 | |
| 43 | |
| 44 | Engine Control Module (ECM) J623/Data-Bus wire (FlexRay-Bus) |
| 45 | Vacuum Sensor G608 |
| 46 | Terminal 31 |
