Comfort System Central Control Module -J393- Location

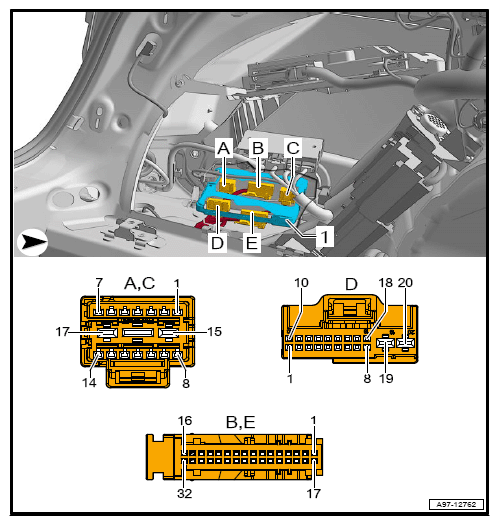

  1. Comfort System Central Control Module -J393-
  1. 17-Pin Connector -T17A- (Connector A), Brown
  2. 32-Pin Connector -T32C- (Connector C), Black
  3. 17-Pin Connector -T17B- (Connector B), Black
  4. 20-Pin Connector -T20E- (Connector E), Black
  5. 32-Pin Connector -T32D- (Connector D), Blue
G12767567Courtesy of AUDI OF AMERICA, LLC
