Electrical Components Locations & Connector End Views -- Q5
>>
Comp. LOC. Vehicle Front Modules
>>
Wiper Motor Control Module J400
>>

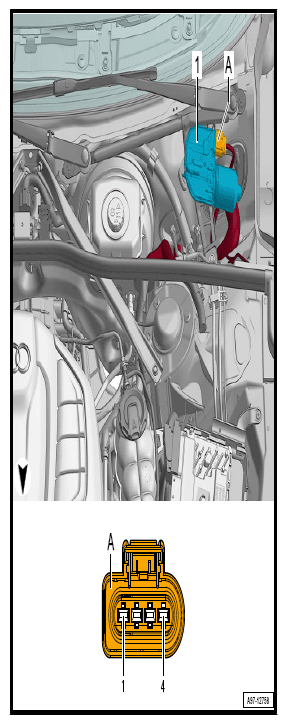

Wiper Motor Control Module -J400- Connector View, LHD
Wiper Motor Control Module -J400- Connector View, LHD
4-PIN CONNECTOR -T4FR- (A)
Courtesy of AUDI OF AMERICA, LLC
T4fr (A)
Designation
1
Data-Bus Wire (LIN-Bus)
2
3
Terminal 31
4
Terminal 30
Courtesy of AUDI OF AMERICA, LLC
