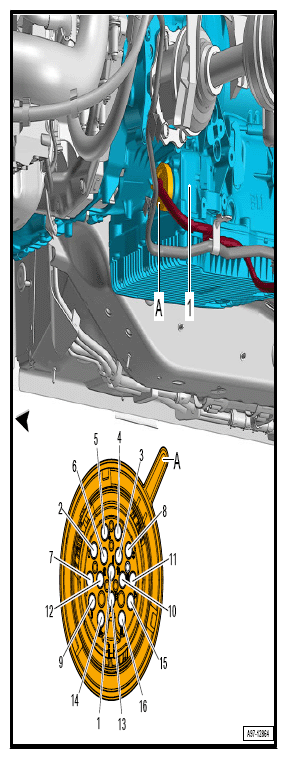

Transmission Control Module (TCM) -J217- Connector Views
16-PIN CONNECTOR -T16A- (A)
| T16a (A) | Designation |
|---|---|
| 1 | Engine Control Module (ECM) J623 |
| 2 | |
| 3 | Data Bus On Board Diagnostic Interface J533/Data-Bus wire (FlexRay Bus) |
| 4 | Data Bus On Board Diagnostic Interface J533/Data-Bus wire (FlexRay Bus) |
| 5 | Power Steering Control Module J500/Data-Bus wire (FlexRay-Bus) |
| 6 | Power Steering Control Module J500/Data-Bus wire (FlexRay-Bus) |
| 7 | |
| 8 | |
| 9 | Terminal 15 |
| 10 | |
| 11 | |
| 12 | |
| 13 | Terminal 30 |
| 14 | Terminal 31 |
| 15 | |
| 16 |
