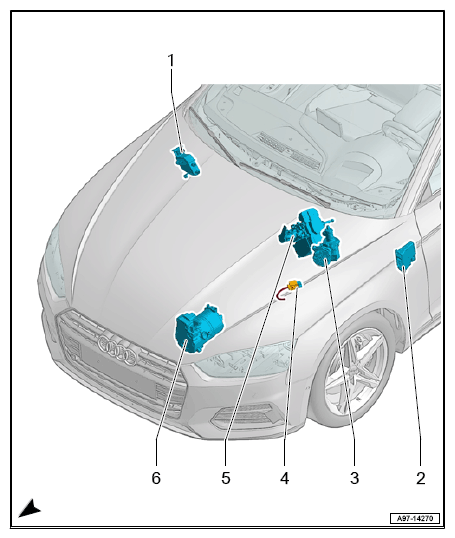

Components Overview, Part II

  1. → "A/C COMPRESSOR CONTROL MODULE J842 "
  2. → "THERMAL MANAGEMENT CONTROL MODULE J1024 "
  3. → "BRAKE BOOSTER NX6/BRAKE SYSTEM PRESSURE RESERVOIR VX70 "
  4. → "HIGH-VOLTAGE SYSTEM MAINTENANCE CONNECTOR TW "
  5. → "BRAKE BOOSTER NX6/BRAKE SYSTEM PRESSURE RESERVOIR VX70 "
  6. → "A/C COMPRESSOR CONTROL MODULE J842 "
G12779369Courtesy of AUDI OF AMERICA, LLC
