Component Location Overview - Sound System

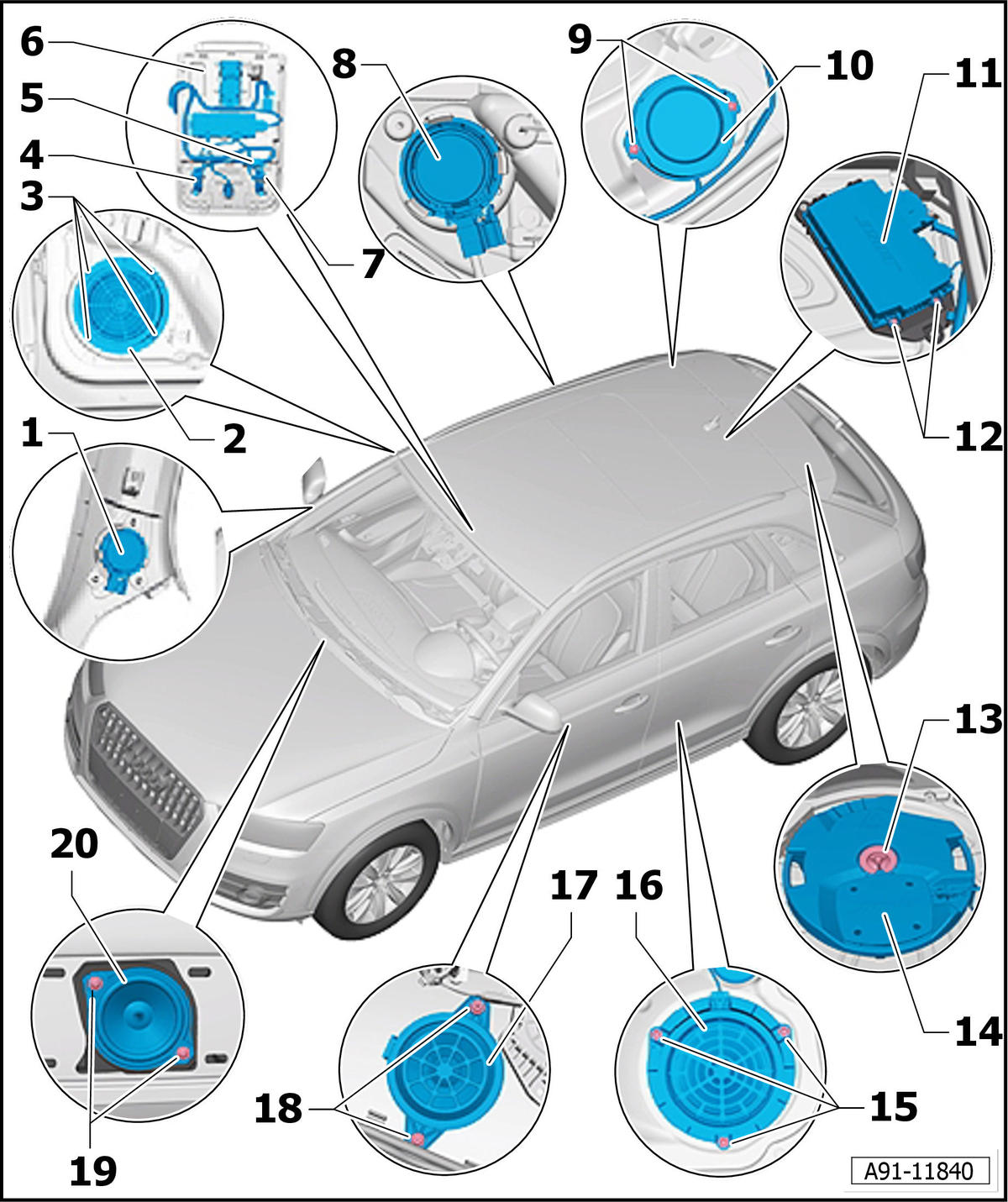

Fig 1: Components Location - Sound System

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
   • Removing and installing. Refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
2. Left Front Mid-Bass Speaker -R101- /Left Front Bass Speaker -R21- /Right Front Mid-Bass Speaker -R102- /Right Front Bass Speaker -R23-
   • Removing and installing. Refer to MID BASS SPEAKER/FRONT BASS SPEAKER, REMOVING AND INSTALLING .
3. Bolt
   • 3 Nm
   • Quantity: 3
4. Telephone Microphone -R38-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
5. 4-Pin Connector -T4bg-
6. Front Interior Lamp -W1-
   • Refer to COMPONENT LOCATION OVERVIEW - ROOF TRIM PANEL LAMPS
7. Interior Microphone -R74-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
8. Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
   • Removing and installing. Refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
9. Bolt
   • 3 Nm
10. Left Rear Speaker -R4- /Right Rear Speaker -R5-
    • Removing and installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
11. Digital Sound System Control Module -J525-
    • Connector assignment. Refer to CONNECTOR ASSIGNMENTS .
    • Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
12. Bolt
    • 3 Nm
    • Quantity: 2
13. Bolt
    • 3 Nm
14. Subwoofer -R211-
    • Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
15. Bolt
    • 3 Nm
    • Quantity: 3
16. Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
    • Removing and installing. Refer to REAR MID-BASS SPEAKER, REMOVING AND INSTALLING .
17. Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
    • Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
18. Bolt
    • 4 Nm
    • Quantity: 2
19. Bolt
    • 2 Nm
    • Quantity: 2
20. Center Speaker -R208-
    • Removing and installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
