Infotainment System Display, Removing And Installing: Installing

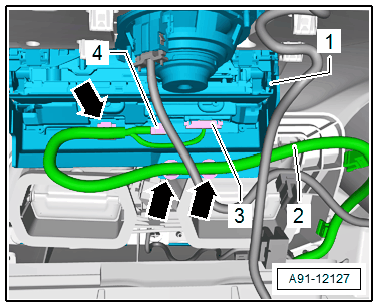

GWWA91-12127Courtesy of AUDI OF AMERICA, LLC

-- Install in reverse order of removal. Note the following:

-- Pay special attention to the correct wiring routing of the display-wires.

  1. Display with Display Support
  2. Display Wiring Harness
  3. 8-Pin Display Connector
  4. 4-Pin Display Connector

Arrow -

Display Wiring Harness Mounting Points on Display Support
