Overview - Selector Mechanism, AUDI A1

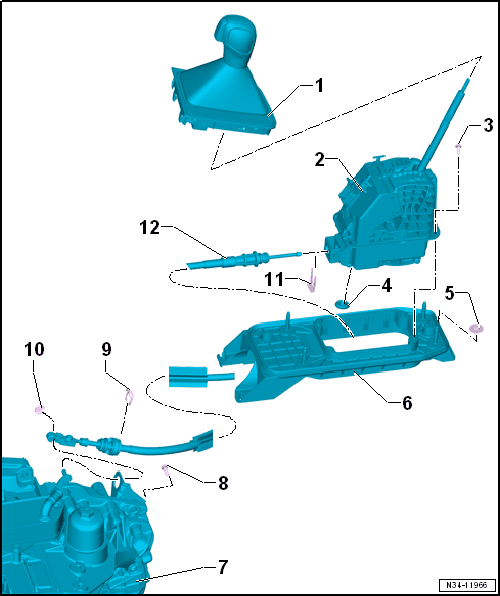

Fig 1: Exploded View Of Selector Mechanism, ZF

Courtesy of AUDI OF AMERICA, LLC

Handle with Shift Cover
- Overview. Refer to OVERVIEW - SELECTOR LEVER HANDLE, AUDI A1 .
Shift Mechanism
- With integrated Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-.
- Removing and Installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 4
Plugs
- Not available
Nut
- 8 Nm
- Quantity: 4
Shifter Housing
- Selector housing can only be replaced with the selector mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
Transmission
Bolt
- 20 Nm + 90°
- Replace after removing
- For attaching the cable bracket to the transmission
- Quantity: 2
Lock Washer
- Replace after removing
Lock Washer
- Replace after removing
Lock Washer
- Replace after removing
Selector Lever Cable
- Selector lever cable can only be replaced with the selector mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Checking and Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
