Vehicle, Lifting
CAUTION:
Using the hoist incorrectly can damage the vehicle.
- Do not exceed the permitted load rating of the hoist.
- Only lift the vehicle at the mounting points shown.
- Position the mounting plate so that it is aligned centrally under the mounting points.
- Maintain distance between the low-lying vehicle components and the hoist.
Procedure :
-- Front: Position the hoist mounting plate on the plastic mount -arrow- on the underbody.

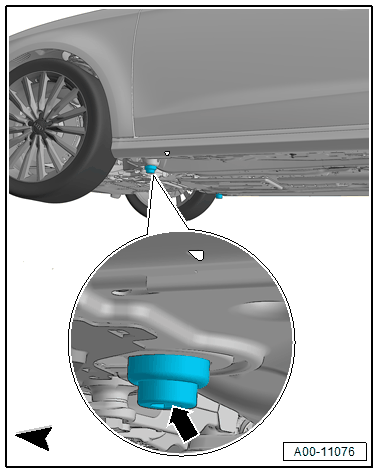

-- Rear: Position the hoist mounting plate on the plastic mount -arrow- on the underbody.
NOTE:
The impressions on the side sill trim panel mark the positions of the mounting points.
