Coolant Fan Control Module -J293- Connector Views

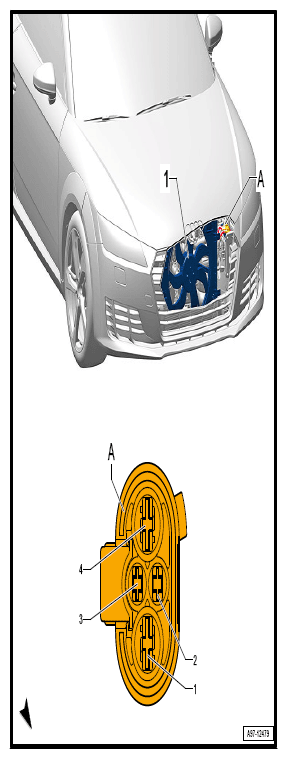

4-PIN CONNECTOR -T4AR- (A)
 Courtesy of AUDI OF AMERICA, LLC
|
| T4AR (A) |
Designation |
| 1 |
Terminal 30, from Fuse Panel A SA |
| 2 |
Terminal 87, from D183 Connection 4 (87a) (in engine compartment wiring harness)
Fuse Panel B SB |
| 3 |
Fan stage, from Engine Control Module J623 |
| 4 |
Terminal 31, to 672 Ground Connection 2 (on left front long member) |
