Wiring Diagrams
>>
Electrical Components Locations & Connector End Views -- TT QUATTRO
>>
Comp. LOC. Vehicle Cabin Modules
>>
Passenger Occupant Detection System Control Module J706
>>

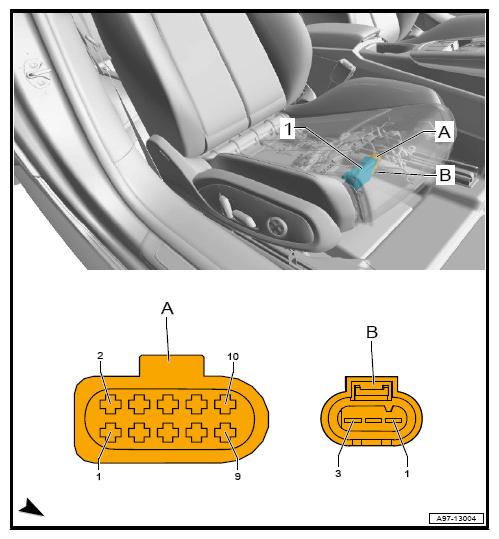

Seat Occupied Recognition Control Module -J706- Location
Seat Occupied Recognition Control Module -J706- Location
1
- Seat Occupied Recognition Control Module -J706-
A
- 10-Pin Connector -T10v-
B
- 3-Pin Connector -T3ad-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
