Windshield Washer Pump Control Module -J1100-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

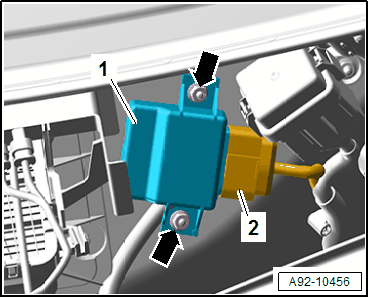

-- Disconnect the connector -2-.
-- Remove the nuts -arrows-.
-- Remove the control module -1-.
