Section 113 (Lighting System)
>>
Auto Headlight Beam Leveler System
>>
Specification
>>
Connector Terminal Arrangement
Connector Terminal Arrangement
WARNING:
This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

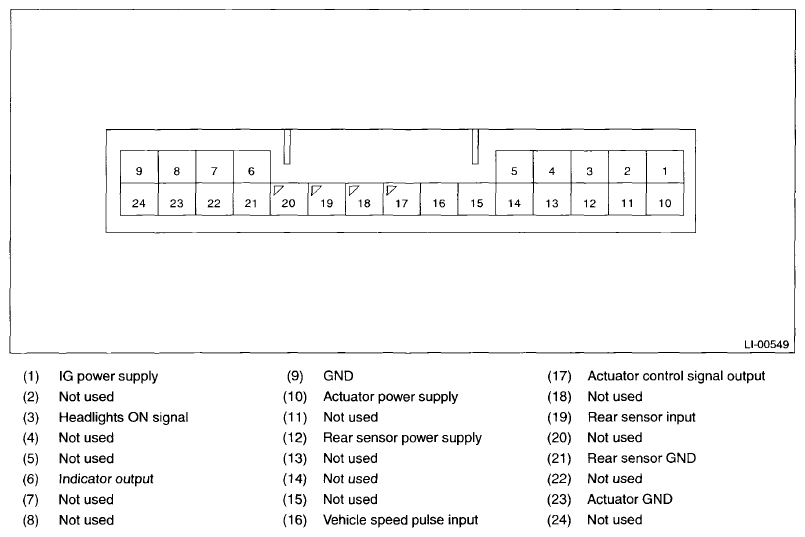

Fig 1: Auto Headlight Beam Leveler System Connector Terminal Arrangement
Courtesy of SUBARU OF AMERICA, INC.
