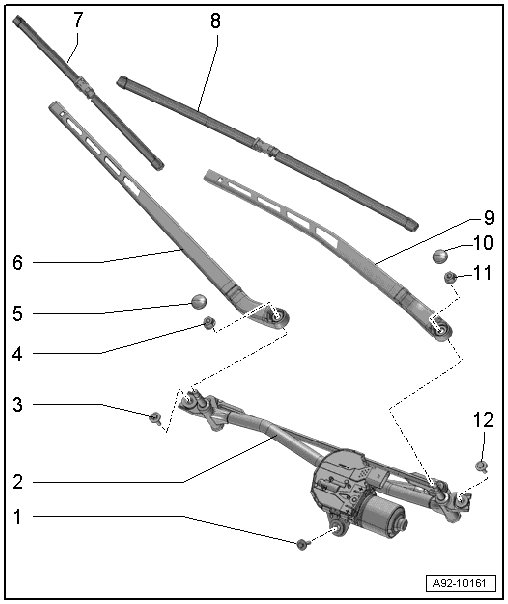

Overview - Windshield Wiper System
- Bolt
- Tightening sequence. Refer to Fig 2
- Windshield Wiper Motor -V-
- With Wiper Motor Control Module -J400-
- Removing and installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Fig 2
- Nut
- 21 Nm
- Cap
- Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Passenger Side Windshield Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 21 Nm
- Bolt
- Tightening sequence. Refer to Fig 2

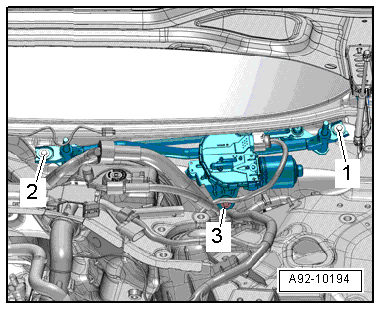

Tightening Specifications and Sequence for the Windshield Wiper Motor
-- Tighten the bolts in stages in the sequence shown:
| Stage | Bolts | Tightening specification |
|---|---|---|
| 1. | -1 though 3- | Install by hand as far as the stop. |
| 2. | -1 though 3- | 8 Nm |
