Component Location Overview - Navigation System

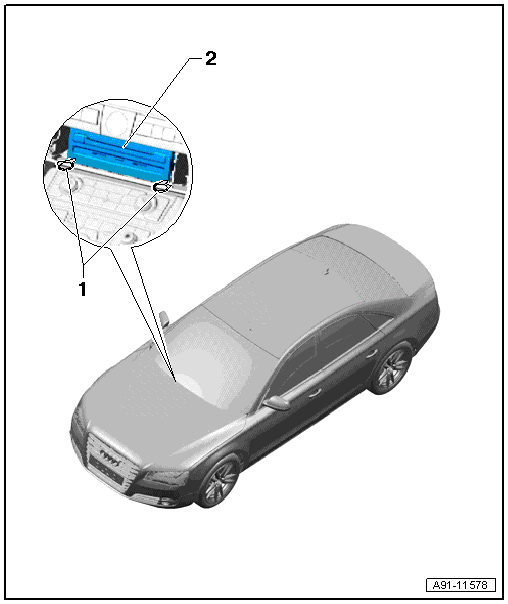

Fig 1: Component Location Overview Of Navigation System

Courtesy of AUDI OF AMERICA, LLC

1. :T10057
2. Information Electronics Control Module 1 -J794-
   • Connector assignment. Refer to Information Electronics Control Module 1 -J794- CONNECTOR ASSIGNMENT .
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
