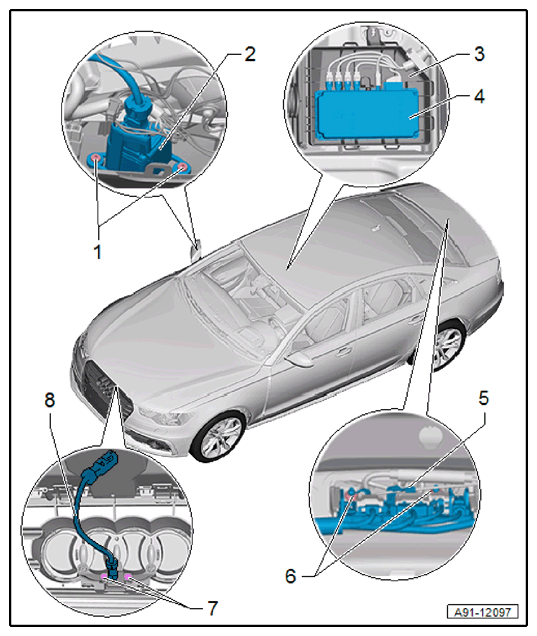

Component Location Overview - Peripheral Camera
- Bolt
- 2 Nm
- Quantity: 2
- Right Peripheral Camera -R245-/Left Peripheral Camera -R244-
- Removing and installing. Refer to Exterior Rearview Mirror; Overview.
- Calibrating. Refer to Peripheral Camera System, Calibrating . -->
- E-Box
- Peripheral Camera Control Module -J928-
- Connector Assignment. Refer to Wiring diagrams, Troubleshooting & Component locations.
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, Removing and Installing . -->
- Calibrating. Refer to Peripheral Camera System, Calibrating .
- Rear Peripheral Camera -R246-
- Sedan, removing and installing. Refer to Peripheral Camera System, Calibrating .
- Avant, removing and installing. Refer to Rear Peripheral Camera - R246-, Removing and Installing .
- Calibrating. Refer to Peripheral Camera System, Calibrating .
- Nut
- 3 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 2
- Front Peripheral Camera - R243-
- Removing and installing. Refer to Peripheral Camera System, Calibrating .
- Calibrating. Refer to Peripheral Camera System, Calibrating .
No Illustration
- Bumper cover end plate screws: 3 Nm
