Adjustment Dimensions

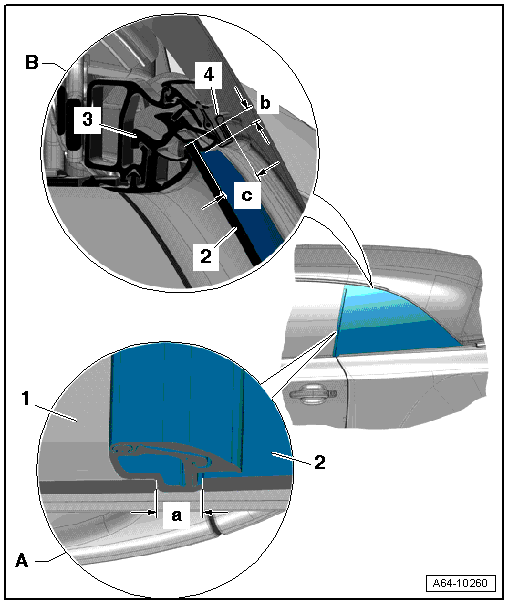

Fig 1: Rear Side Window, Adjustment And Gap Dimensions

GWWA64-10260

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A - Door Window to the Side Window
- Dimension -a- = 11.60 ± 1.0 mm
- Adjust: Side adjustment and height adjustment. Refer to SIDE WINDOW, ADJUSTING .
  -1- Door window

  -2- Side window
B - Side Window to the Convertible Top
- Dimension -b- =7.18 ± 2.0 mm
- Dimension -c- = 13.80 +1.0/-3.0 mm
- Adjust: Side adjustment and height adjustment. Refer to SIDE WINDOW, ADJUSTING .
  -2- Side window

  -3- Convertible top seal

  -4- Convertible top cover
