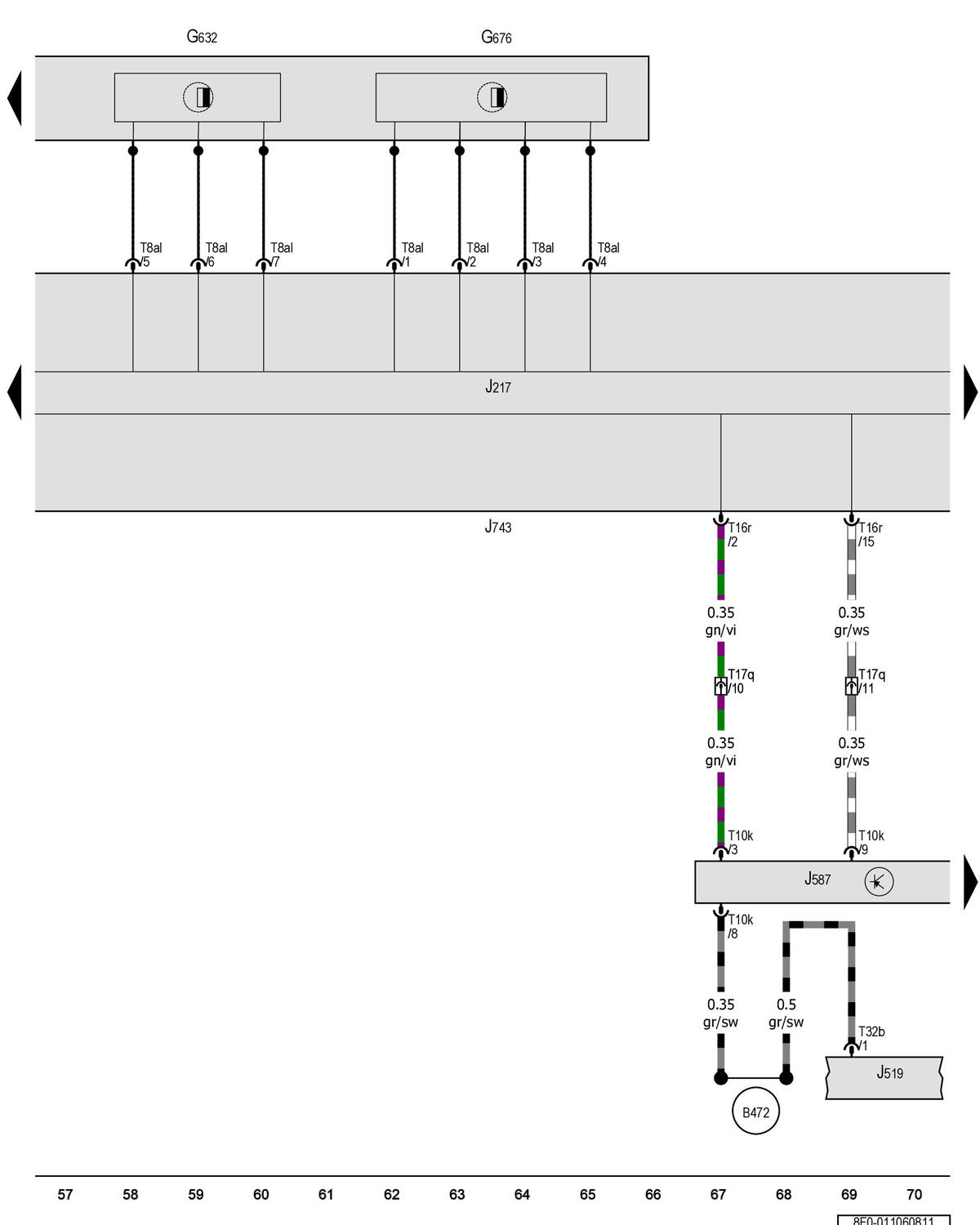

Transmission Input Speed Sensor 1, Drive Position Sensor, Transmission Control Module, Vehicle Electrical System Control Module, Selector Lever Sensor System Control Module: Notes

GWW8F0-011060811Courtesy of AUDI OF AMERICA, LLC
