Vehicle Electrical System Control Module Connector End View (J519, T73A, T46B, T73C)

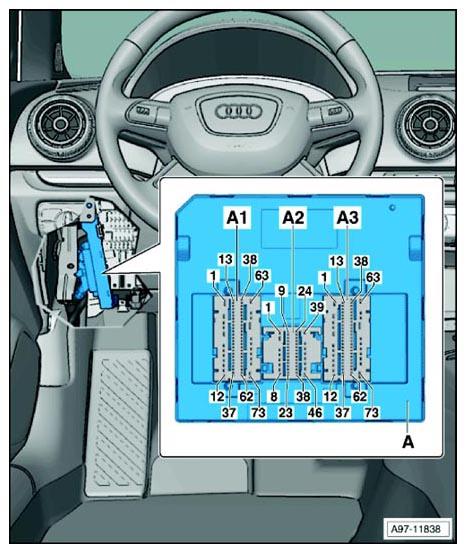

Fig 1: Vehicle Electrical System Control Module Connector End View (J519, T73a, T46b, T73c)
G10360249Courtesy of AUDI OF AMERICA, LLC
A Vehicle Electrical System Control Module -J519-
A1 73-Pin Connector -T73a-, black
A2 46-Pin Connector -T46b-, black
A3 73-Pin Connector -T73c-, black
