Control Module For Information Electronics 1 Connector End View (J794, T2T, T2AC, T4W, T4AL, T2AD, T4V)

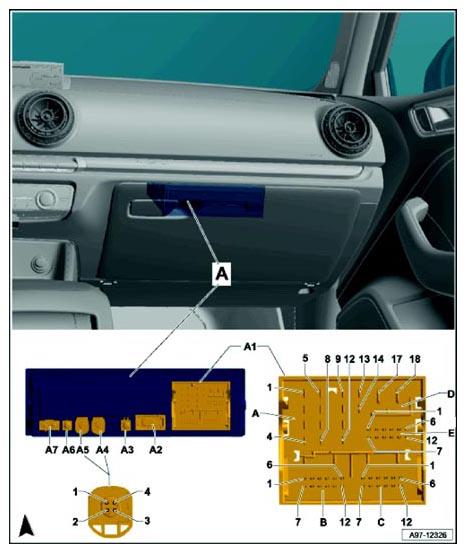

Fig 1: Control Module For Information Electronics 1 Connector End View (J794, T2t, T2ac, T4w, T4al, T2ad, T4v)

Courtesy of AUDI OF AMERICA, LLC

A	Control Module for Information Electronics 1 -J794-
A1	Connector block, composed of:
8-Pin Connector -T8ag- (connector A), brown
12-Pin Connector -T12x- (connector B), blue
12-Pin Connector -T12y- (connector C), green
8-Pin Connector -T8j- (connector D), black
12-Pin Connector -T12v- (connector E), grey
A2	Double Connector -T2t-, black
A3	Double Connector -T2ac-, blue
A4	4-Pin Connector -T4w-, yellow
A5	4-Pin Connector -T4al-, purple
A6	Double Connector -T2ad-
A7	4-Pin Connector -T4v-
