All-Wheel Drive Control Module Connector End View (J492, T2AX, T8Y)

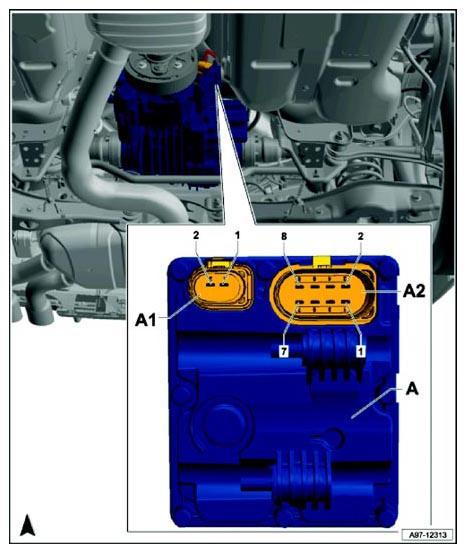

Fig 1: All-Wheel Drive Control Module Connector End View (J492, T2ax, T8y)
G10360274Courtesy of AUDI OF AMERICA, LLC
A All-Wheel Drive Control Module -J492-
A1 Double Connector -T2ax-
A2 8-Pin Connector -T8y-, black
