Home >> Audi >> 2017 >> S3 Premium Plus >> Repair and Diagnosis (Single Page) >> Engine Performance >> Remove, Overhaul & Install >> Wiring Diagram [CHHB,CJXB,CJXC,CJXF,CNTC,CYFB,CJXG,CJXD] -- (A3 Cabriolet / Sedan) >> Wiring Diagram(S) >> Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface >> Notes

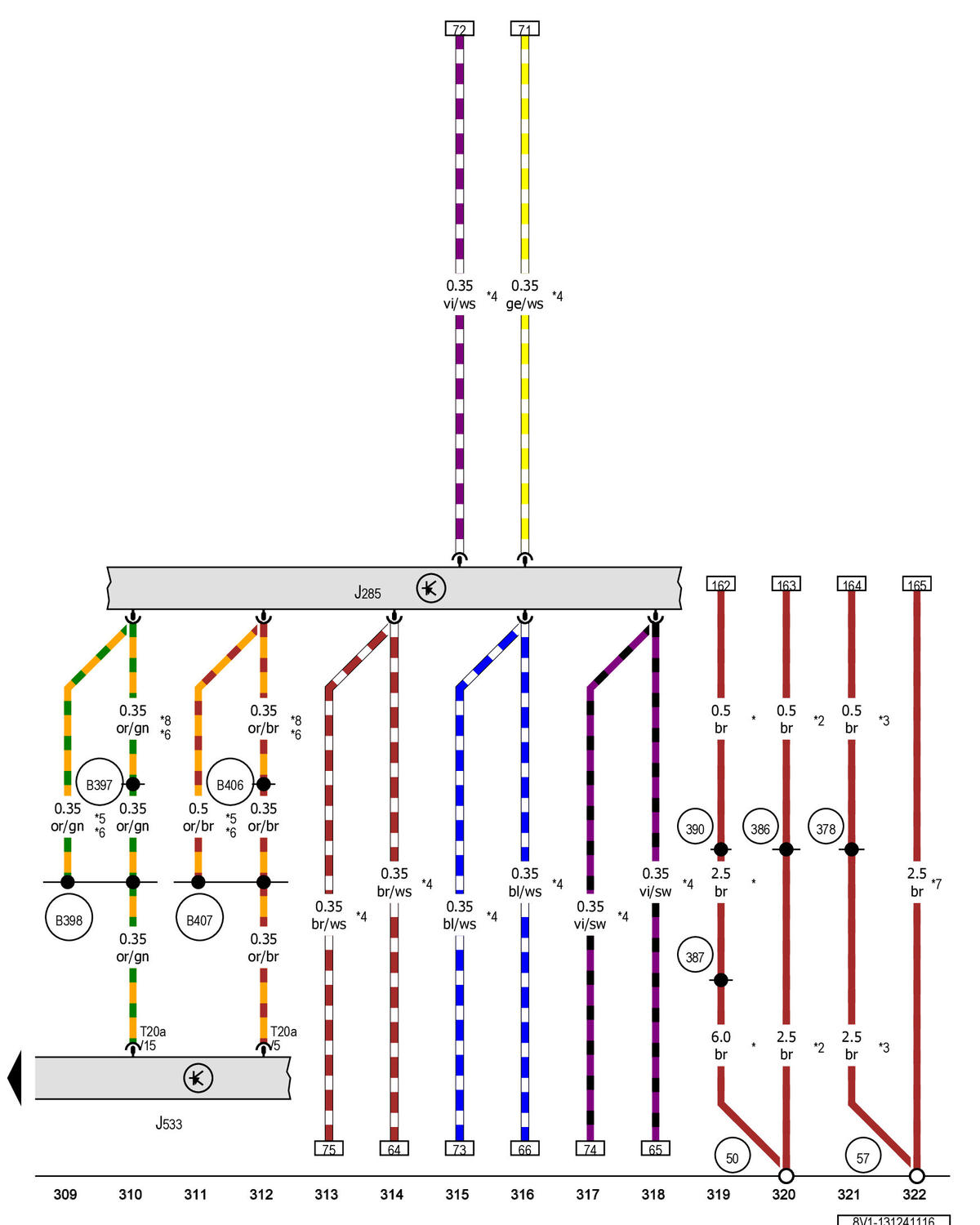

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface: Notes

GWW8V1-131241116
