CLIMATRONIC Control Module Connector End View (J255, T16D, T16C, T20B)

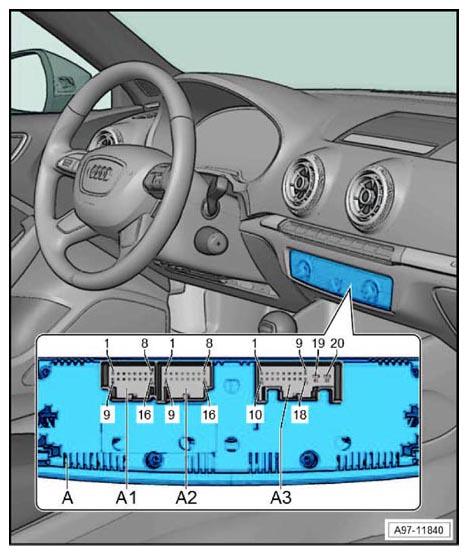

Fig 1: Climatronic Control Module Connector End View (J255, T16d, T16c, T20b)
G10360248Courtesy of AUDI OF AMERICA, LLC
A Climatronic Control Module -J255-
A1 16-Pin Connector -T16d-
A2 16-Pin Connector -T16c-
A3 20-Pin Connector -T20b-, black
