Overview - Windshield Washer System, With Side Auxiliary Cooler

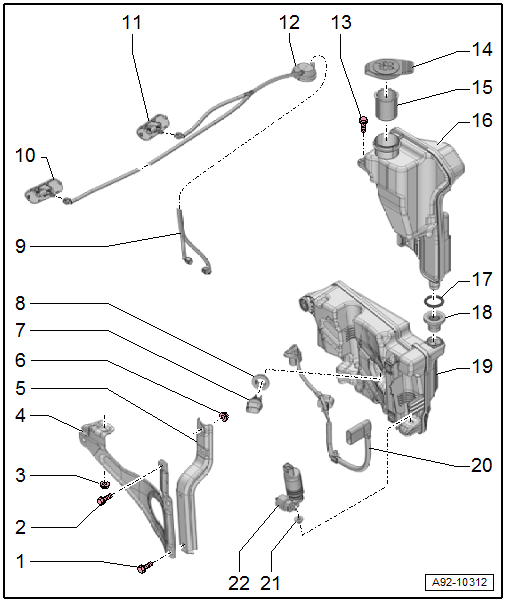

Fig 1: Exploded View Of Windshield Washer System, With Side Auxiliary Cooler

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
- Quantity: 3
Bolt
- 8 Nm
Nut
- 8 Nm
Mount
- For the windshield washer fluid reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR MOUNT, REMOVING AND INSTALLING .
Mount
- For the filler neck
- Removing and installing. Refer to MOUNT FOR WINDSHIELD WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING .
Nut
- 8 Nm
- Quantity: 2
Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .
Grommet
- Replace if damaged.
Water Hose
- For the windshield washer system
Right Spray Nozzle
- Vehicle equipment version with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information.
Left Spray Nozzle
- Vehicle equipment version with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information.
Grommet
- For the windshield washer fluid hose inside the hood
Bolt
- 8 Nm
Cap
- For the filler neck
Screen
Filler Tube
- For the windshield washer fluid reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .
O-Ring
- Replace if damaged.
Grommet
- Replace if damaged.
Windshield Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .
Wiring Harness
Grommet
- Replace if damaged.
Windshield And Rear Window Washer Pump -V59-
- Removing and installing. Refer to Windshield and Rear Window Washer Pump -V59-, REMOVING AND INSTALLING, AUDI A3/S3 WITH SIDE AUXILIARY COOLER .
