Overview - Windshield Washer System, AUDI RS3

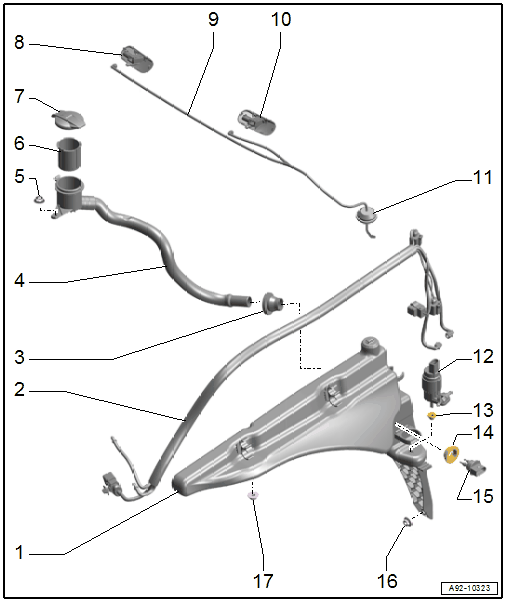

Fig 1: Exploded View Of Windshield Washer System, Audi RS3

Courtesy of AUDI OF AMERICA, LLC

1. Washer Fluid Reservoir
   • With Windshield Washer Fluid Level Sensor -G33- Cannot be replaced separately if faulty.
   • Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI RS3 .
2. Wire Package
   • With wiring harness and washer fluid hose for front and rear window washer system
3. Grommet
   • Replace if damaged.
4. Filler Neck with Filler Tube
   • For the washer fluid reservoir
   • Removing and Installing. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING, AUDI RS3 .
5. Nut
   • 8 Nm
6. Screen
7. Cap
   • For the filler neck
8. Right Spray Nozzle
   • Vehicle equipment version with Right Washer Nozzle Heater -Z21-
   • Removing and Installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
   • Adjusting. Refer to appropriate service information .
9. Washer Fluid Hose
   • For the windshield washer system
10. Left Spray Nozzle
    • Vehicle equipment version with Left Washer Nozzle Heater -Z20-
    • Removing and Installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
    • Adjusting. Refer to appropriate service information.
11. Grommet
    • For the windshield washer fluid hose inside the hood
12. Windshield And Rear Window Washer Pump -V59-
    • Removing and Installing. Refer to Windshield and Rear Window Washer Pump -V59-, REMOVING AND INSTALLING, AUDI RS3 .
13. Grommet
    • Replace if damaged.
14. Grommet
    • Replace if damaged.
15. Windshield Washer Fluid Level Sensor -G33-
    • Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING, AUDI RS3 .
16. Nut
    • 8 Nm
17. Nut
    • Quantity: 2
    • 8 Nm
