Infotainment System Display, Removing And Installing: Notes

Special tools and workshop equipment required

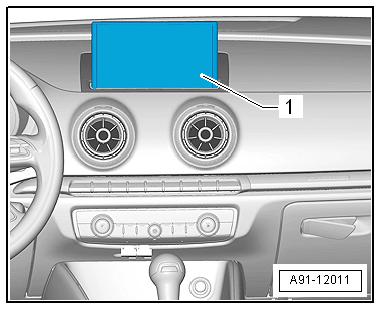

The Front Information Display Control Head -J685- -1- is located in the center of the instrument panel.

GWWA91-12011Courtesy of AUDI OF AMERICA, LLC
