Overview - External Multimedia Device Connection, Through My 2016

There are several versions of the External Audio Source Connection -R199- :

>>USB charging<< is the USB Connection Baseplate -R193-

The External Audio Source Connection -R199- is connected to the Information Electronics Control Module 1 -J794-

Component location AMI, UE7

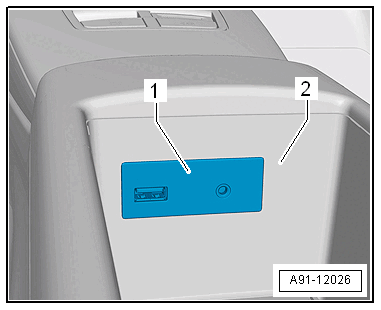

Fig 1: Component Location AMI, UE7

Courtesy of AUDI OF AMERICA, LLC

The connection -1- is located in the center console storage compartment -2-.

AMI component location - USB Connection Baseplate R193, UE7

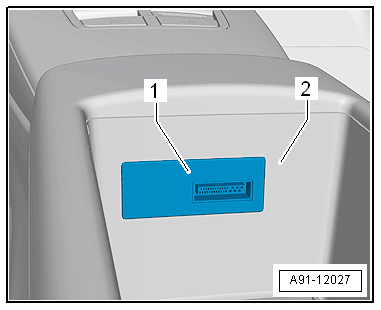

Fig 2: AMI Component Location - USB Connection Baseplate -R193-, UE7

Courtesy of AUDI OF AMERICA, LLC

The connections -1- are located in the center console storage compartment -2-.

Component location AUX IN jack, UE3

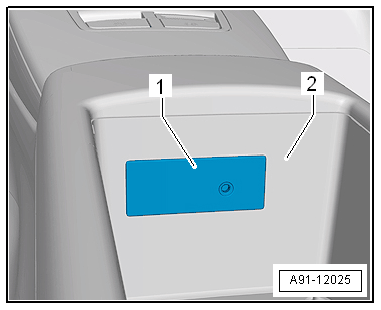

Fig 3: Component location AUX IN jack, UE3

Courtesy of AUDI OF AMERICA, LLC

The connection -1- is located in the center console storage compartment -2-.

AUX IN component location - USB Connection Baseplate R193

Fig 4: AUX IN component location - USB Connection Baseplate -R193-

Courtesy of AUDI OF AMERICA, LLC

The connection -1- is located in the center console storage compartment -2-.

Either an AMI or AUX IN jack is installed.

Different external audio sources can be connected to the External Audio Source Connection -R199- :

Suitable adapter cables are needed. Refer to the Owner's Manual.

Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester.
