Left/Right Effects Speaker -R209- / -R210-, Removing And Installing, Convertible: Notes

Special Tools And Workshop Equipment Required

• Trim Removal Wedge:3409
• Torque Screwdriver:VAG1624

The Left Effects Speaker -R209- /Right Effects Speaker -R210- -1- are located in the side trim panel inserts.

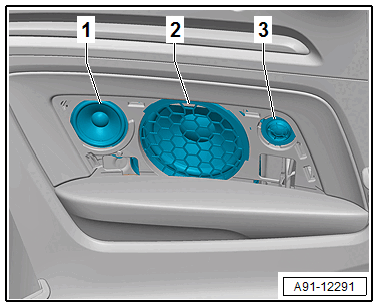

Fig 1: Locating Left/Right Effects Speaker -R209- / -R210-

Courtesy of AUDI OF AMERICA, LLC

Removing and installing is identical.
