Overview - Start/Stop System

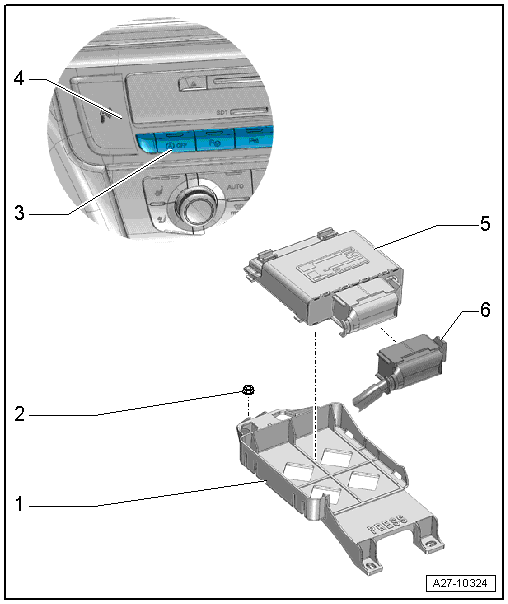

Fig 1: Start/Stop System Exploded View

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For the Voltage Stabilizer -J532-
Nut
- 3 Nm
Start/Stop Mode Button -E693-
- Removing and installing. Refer to INSTRUMENT PANEL BUTTON, REMOVING AND INSTALLING
Trim
- For Information Electronics Control Module 1 -J794-
Voltage Stabilizer -J532-
- Removing and installing. Refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING
Connector
