Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Move the carpet to the side. Refer to CARPET, REMOVING AND INSTALLING .

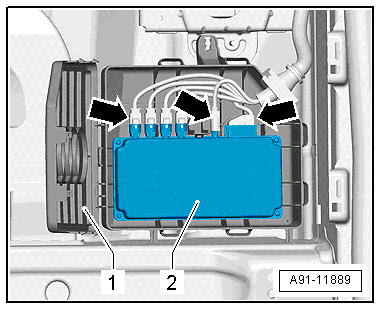

-- Open the E-box cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -arrows- from the Peripheral Camera Control Module -J928- -2-.

The Peripheral Camera Control Module -J928- -2- is only clipped into the E-box.

Courtesy of AUDI OF AMERICA, LLC

-- Push the retainer to the side and remove the Peripheral Camera Control Module -J928- -2- from the E-box.
