Overview - Steering Wheel

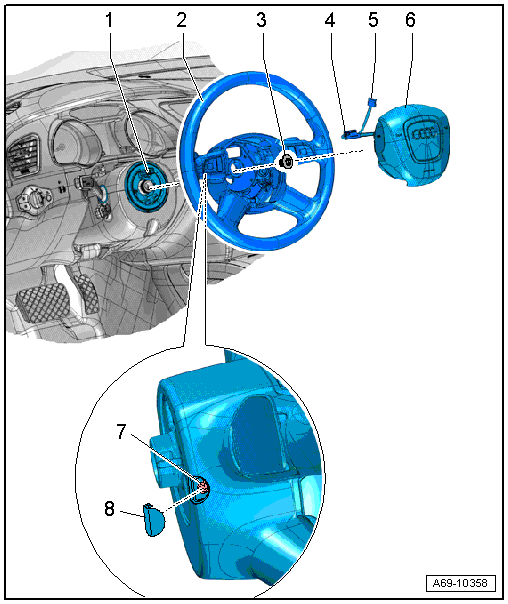

Fig 1: Exploded View Of Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

Steering Column Electronics Control Module -J527-
- Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
Airbag Steering Wheel
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
Bolt
- 50 Nm
- Always replace if removed
Connector
Connector
Driver Side Airbag
- Removing and Installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
  WARNING:
  Follow the safety precautions when working on airbags. Refer to SAFETY PRECAUTIONS .
Locking Bracket
- Releasing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Cap
- Not installed on this model
