Tie Rod End, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

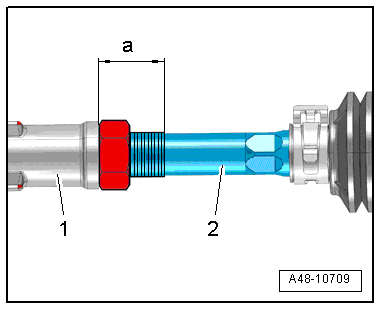

-- Mount the tie rod head -1- on the tie rod -2- until dimension -a-, which was measured during removal, is reached.

Courtesy of AUDI OF AMERICA, LLC

-- Align the tie rod head -1- so that the pin is in the installation position.

-- Insert the tie rod end into the wheel bearing housing as far as the stop.

-- Tighten the nut -1-. Counterhold when tightening.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -2-

Courtesy of AUDI OF AMERICA, LLC

-- Install the front wheel. Refer to WHEELS AND TIRES .

-- Axle alignment. Refer to EVALUATING NEED FOR AXLE ALIGNMENT .

The axle alignment must be performed on a VW/Audi approved alignment stand.
