Overview - Window Guides And Window Shaft Strips

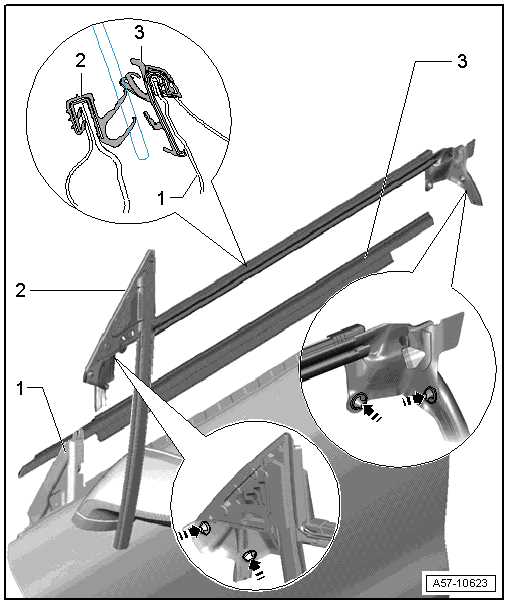

Fig 1: Exploded View Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

Door
Inner Window Shaft Strip
NOTE:
Vehicles with tinted glass have a different version.
- Removing:
  The door trim panel is removed. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

  -- Remove the triangular trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING

  -- Front door window removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

  -- Unclip the window shaft strip first near the door >>B-pillar<< (quantity: 2) and near the >>A-pillar<< (quantity: 1).

  -- Remove the window shaft strip with the guide rail for the window guide from the door upward.
Outer Window Shaft Strip
- Removing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
