Night Vision System Camera, Removing And Installing: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the front lock carrier cover. Refer to LOCK CARRIER, REMOVING AND INSTALLING .

-- Release the clamp -arrow-, and remove the washer fluid hose -1-.

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, clamp off the washer fluid hose at a suitable location using :3094  .

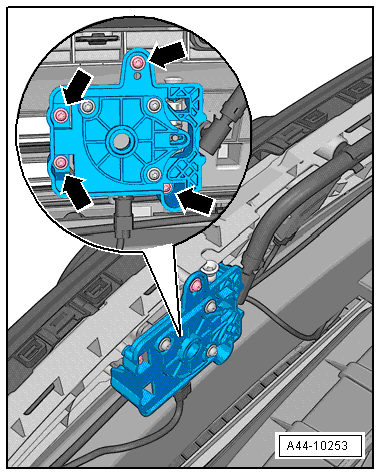

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Night Vision System Camera -R212- with the retaining plate from the front bumper cover and guide upward. Pay attention that the spray nozzle is not damaged.

-- Disconnect the connector from the Night Vision System Camera -R212-.

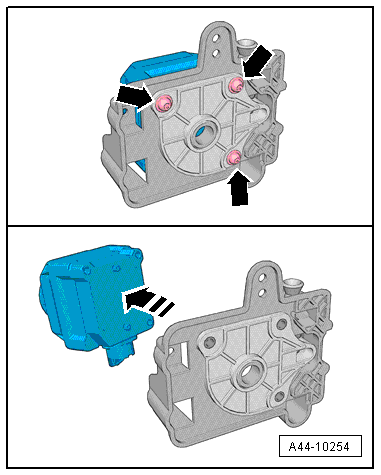

-- Remove the bolts -arrows- and remove the Night Vision System Camera -R212- from the retaining plate.

Courtesy of AUDI OF AMERICA, LLC

Removing The Protective Window

• Night Vision System Camera -R212- removed

-- Remove the trim. Refer to -item  ) Night Vision System Camera -R212-.

-- Push the retaining tabs -arrow- together and turn the cover approximately 90° counter-clockwise.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover, protective window and seal from the Night Vision System Camera -R212-.
