Left/Right Front Level Control System Sensor -G78- / -G289-, Removing And Installing: Removing

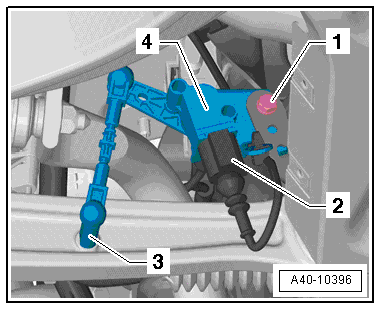

-- Disconnect connector -2-.

GWWA40-10396Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut (not illustrated) from the mount -3-.

-- Remove the bolt -1-.

-- Remove the level control system sensor -4-.
