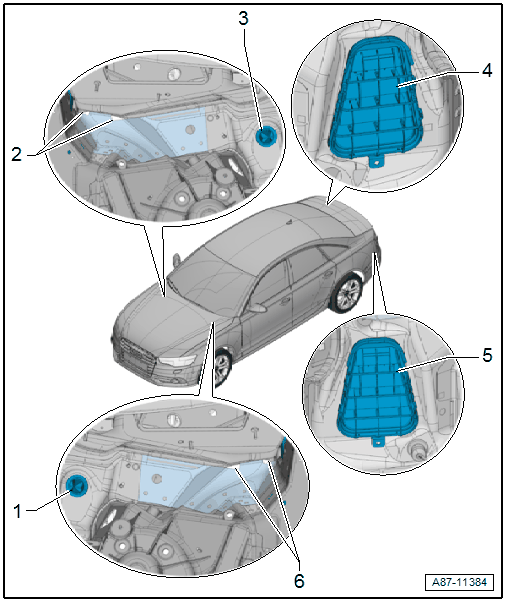

Components Outside Of Passenger Compartment, Component Group 3

Courtesy of AUDI OF AMERICA, LLC

1. Left Center Plenum Chamber Water Drain
   • Checking. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
   • Cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CLEANING .
2. Right Plenum Chamber Water Drain
   • Checking. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
   • Cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CLEANING .
3. Right Center Plenum Chamber Water Drain
   • Checking. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
   • Cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CLEANING .
4. Right Passenger Compartment Forced Air Extraction
   • Component location overview. Refer to COMPONENT LOCATION OVERVIEW - REAR COMPONENTS OUTSIDE OF PASSENGER COMPARTMENT .
5. Left Passenger Compartment Forced Air Extraction
   • Component location overview. Refer to COMPONENT LOCATION OVERVIEW - REAR COMPONENTS OUTSIDE OF PASSENGER COMPARTMENT .
6. Left Plenum Chamber Water Drain
   • Checking. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
   • Cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CLEANING .
