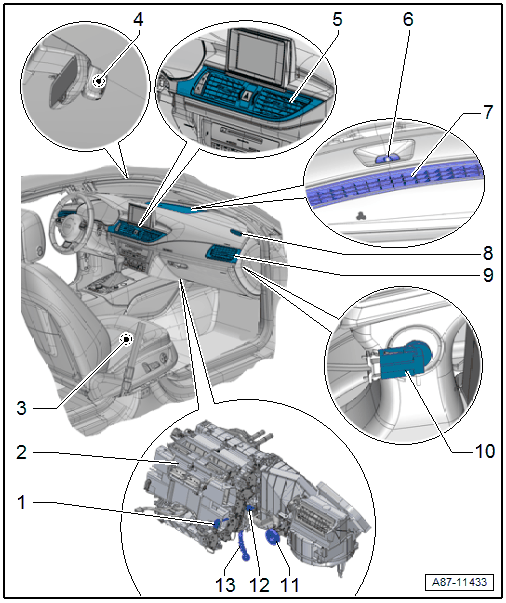

Right Side Of Passenger Compartment
- Right Footwell Vent Temperature Sensor -G262-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
- Heater and A/C Unit, Right Side
- Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE HOUSING .
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Disassembling and assembling. Refer to COMPONENT LOCATION OVERVIEW - HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Right Front Seat
- Depending on the vehicle equipment level with seat heating, seat ventilation
- There are different versions.
- For information about seat heating function. Refer to SEAT HEATING .
- For information about seat ventilation. Refer to SEAT VENTILATION .
- Seat heating, servicing. Refer to FRONT SEAT COVERS AND CUSHIONS .
- Seat ventilation, servicing. Refer to FRONT SEATS .
- Humidity Sensor -G355-
- There are different versions.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- The humidity sensor is integrated in the Rain/Light Recognition Sensor -G397- and cannot be replaced separately when faulty. Replacing. Refer to Humidity Sensor -G355-, Removing And Installing .
- Right Center Instrument Panel Vent with Position Sensor in Right Center Vent -G627-
- In the "Convenience" version
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT
.NOTE:
After replacement of the instrument panel vent, perform an adaptation for the Climatronic Control Module -J255- control head to the end stops on the potentiometer. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- Sunlight Photo Sensor -G107-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
- Windshield Defroster Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
- Defroster Vent for the Right Side Window
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
- Right Instrument Panel Vent with Position Sensor in Right Side Vent -G629-
- In the "Convenience" version
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT
.NOTE:
After replacement of the instrument panel vent, perform an adataption for the Climatronic Control Module -J255- control head to the end stops on the potentiometer. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- Right Vent Temperature Sensor -G151-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING .
- An incorrectly installed vent temperature sensor causes flow-generated noise
- Air Duct For Glove Compartment Cooling
- Evaporator Vent Temperature Sensor -G263-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING
.NOTE:
Depending on the Audi A6 e-tron version, the measured value for the Evaporator Vent Temperature Sensor -G263- can be evaluated by the Climatronic Control Module -J255- control head (as on all other vehicles of this model line) or by the Thermal Management Control Module -J1024-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and Refer to the Appropriate Wiring Diagram.
If the measured value is evaluated by the Thermal Management Control Module -J1024- on the Audi A6 e-tron (and is transmitted via the data bus to the Climatronic Control Module -J255-), there is a different version of the Climatronic Control Module -J255- installed. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and
- Right Condensation Water Drain
- Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
