A/C Compressor Input Shaft, Removing And Installing: Removing

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING, 8-CYLINDER FSI/TFSI ENGINE .

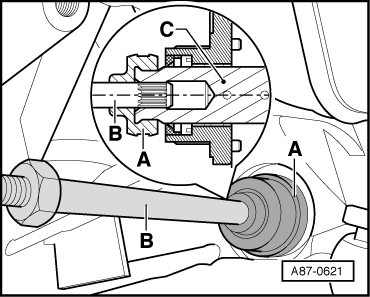

-- Loosen the hose clamps and remove the grommet -A-.

GWWA87-0621Courtesy of AUDI OF AMERICA, LLC

-- Remove the input shaft -B- from the drive wheel splines -C-.
