Spring Mat, Removing And Installing: Installing

WARNING:
  • Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
  • Observe all measures when installing the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

Install in reverse order of removal. Note the following:

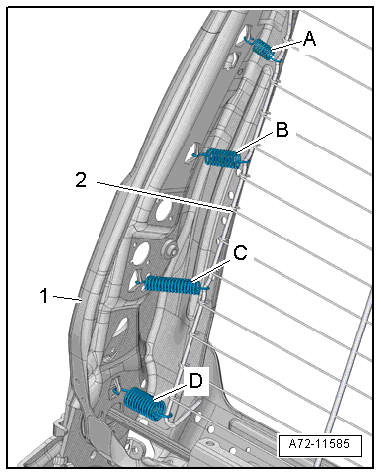

-- Label the springs -A through D- as shown in the illustration.

GWWA72-11585Courtesy of AUDI OF AMERICA, LLC
NOTE:

Make sure the connectors are installed correctly and are secure.

WARNING:

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

-- Connect the battery ground cable with the ignition turned on. Refer to Battery; Disconnecting and Connecting .

NOTE:

If the Airbag Indicator Lamp -K75- indicates a fault after installing, check the DTC memory, erase it and then check it again using the Vehicle Diagnostic Tester.
