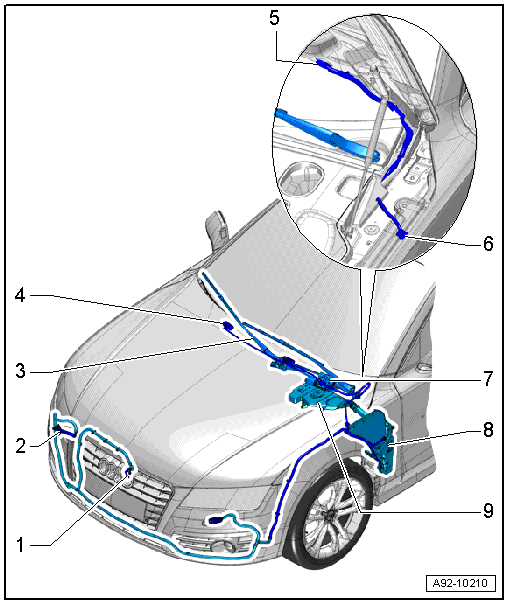

Component Location Overview - Windshield Wiper System
- Spray Nozzle for Night Vision System Camera -R212-
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Headlamp Washer System Spray Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Wiper Arm
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Spray Nozzle
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Grommet
- For the windshield washer fluid hose inside the hood
- Grommet
- For the windshield washer fluid hose on the fender
- Windshield Wiper Motor -V-
- With Wiper Motor Control Module -J400-
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Windshield Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Filler Tube
- For the windshield washer fluid reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
