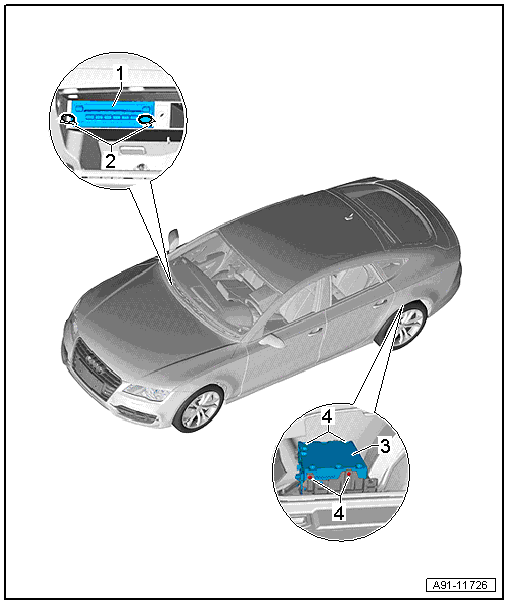

Component Location Overview - TV System, Through My 2014

Courtesy of AUDI OF AMERICA, LLC

1. DVD Changer -R161-
   • Connector assignment DVD Changer -R161- CONNECTOR ASSIGNMENT, THROUGH MY 2014 .
   • Removing and installing. Refer to DVD CHANGER, REMOVING AND INSTALLING .
2. Radio Removal Tool :T10057
3. TV Tuner -R78-
   • Hybrid connector assignment. Refer to TV Tuner -R78- CONNECTOR ASSIGNMENT, HYBRID .
   • Removing and installing. Refer to TV Tuner -R78-, REMOVING AND INSTALLING, HYBRID .

     - digital TV Tuner -R78-, from MY 2012

   • Connector assignment DIGITAL TV Tuner -R78- CONNECTOR ASSIGNMENT .
   • Removing and installing. Refer to DIGITAL TV Tuner -R78-, REMOVING AND INSTALLING, THROUGH MY 2014 .
4. Screw
   • Hybrid quantity: 4
   • DTV quantity: 2
   • 2 Nm
